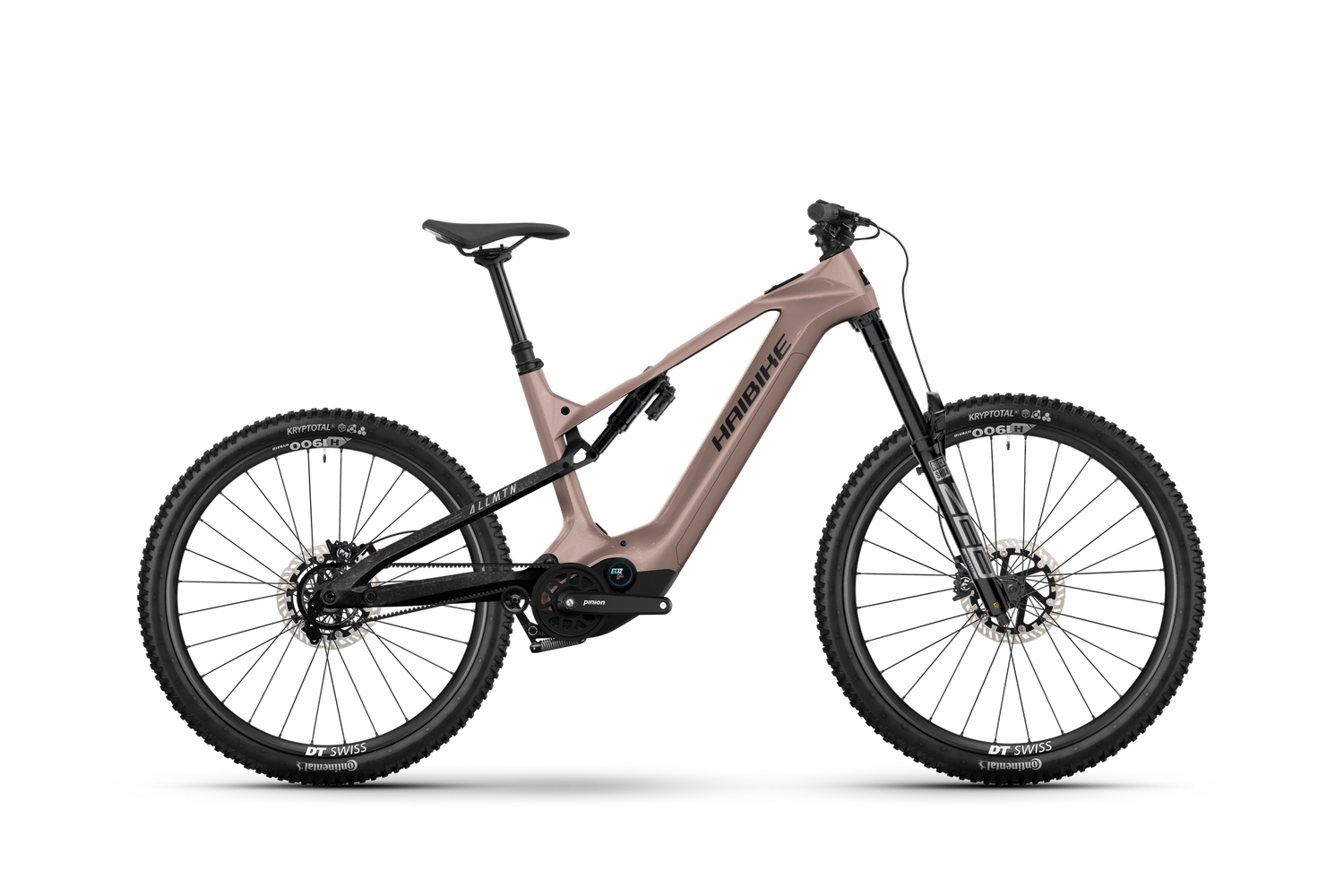

Haibike AllMtn CF 11 TRN/IQ Full Sus MTB E-Bike - 2026

The 2025 HAIBIKE ALLMTN CF 11 TRN/IQ marks a significant evolution in high-performance full suspension electric mountain bikes, specifically designed for the demands of enduro riding. Its core innovation lies in the integration of the Pinion Motor Gearbox Unit (MGU) E1.12, a system that combines a powerful motor with an electronically controlled 12-speed gearbox. This unified design provides seamless and intuitive performance, letting riders focus on the trail ahead, whether on steep ascents or technical descents.

With 160mm of suspension travel front and rear and a mullet wheel setup (29" front, 27.5" rear), this bike excels on challenging terrain. The high-capacity 800Wh battery provides extended range, while the Pinion MGU ensures optimized power delivery. Part of HAIBIKE's TRN/IQ series, this e-Enduro delivers cutting-edge performance for advanced riders.

Frame & Suspension

• Frame: Carbon, disc brake Post Mount

• Frame material: Carbon

• Fork brand: RockShox

• Fork: RockShox ZEB Ultimate Charger 3.1 RC2, 160 mm travel

• Rear shock: RockShox Super Deluxe Ultimate RC2T 230x60mm, DebonAir+

• Dropper seatpost: Yes

• Seatpost: Limotec A4H Dropper, Dia. 34.9 mm

• Saddle: Selle Royal Vivo

Motor & Battery

• Motor: Pinion E1.12 MGU, 85 Nm

• Motor controller: Pinion FIT Remote Pure

• Display: Pinion FIT Master Node Display

• Battery: Pinion FIT InTube 800Wh

• Charger: Pinion FIT Standard Charger 48V

Drive & Gearing

• Crankset: Pinion Forge Crankset + GATES CDX front sprocket w/ Guard 165

• Chain: Gates Carbon Drive Belt CDX, 120T

• Shifters: Pinion Triggershift Smart Shift TE1 E-Trigger

• Number of gears: 12 speed

• Rear derailleur: N/A

Wheels & Tyres

• Wheel size: 29" front, 27.5" rear

• Rims: DT Swiss H 1900 Spline, 30 mm, Centerlock

• Tyres: Front: Continental Kryptotal-Fr, Enduro Soft, 60-622 / Rear: Continental Kryptotal-Re, Enduro Casing, 60-584

Handlebar & Controls

• Handlebar: Haibike TheBar+++ Dia. 31.8 mm, 780 mm width

• Stem: Haibike The Stem++ Ahead, 35 mm (S-L) / 60 mm (XL)

• Grips: MTB Grip Set XLC VLG-1751D2

Brakes & Pedals

• Brake brand: Magura

• Hydraulic brakes: Yes

• Brakes: Magura MT5, 4 pistons, 203 mm, aluminium

• Pedals: XLC VPE-527 MTB Alloy Pedal w/ Reflector
